If the machine must be in a raised position while working on or near it, be certain service locks are installed or machine is adequately supported. Anytime hydraulic work must be done, lower the

OMA74672: 1770NT CCS 16-Row Narrow Planter With MaxEmerge® Plus Row ...

OMA83922: 1770NT CCS 16-Row Narrow Planter With PRO-SERIES™XP Row Units, Block File: OUO6074_0000A5D_19_07JUL05.htm OMA83922: 1770NT CCS 16-Row Narrow Planter With PRO-SERIES™XP Row Units, Block File: OUO6435_0001A7A_19_07MAR05.htm

OMA87732: 1720, 1720 CCS Integral Planters table of contents

Leveling Seed in CCS Tanks CAUTION: Do not open lids when CCS blower is running. Lids and harmful chemicals may be blown into face and seed lines will plug. Follow chemical 7. Whenever machine has been standing for an hour or more during period of high humidity or damp, rainy days, or after sitting overnight, run CCS fan at recommended rpm, with machine

IMPORTANT: Apply seed treatment to seed BEFORE applying talc lubricant to insure that treatment adheres to seed properly while minimizing buildup on meter components. If buildup OMA83922: 1770NT CCS 16-Row Narrow Planter With PRO-SERIES™XP Row Units, Block File: OUO6435_0001A72_19_06MAY04.htm

OMA83922: 1770NT CCS 16-Row Narrow Planter With PRO-SERIES™XP Row Units, Block File: OUO6074_00003CE_19_09FEB04.htm Fill crankcase of pump with TY6296 SAE 80/90 W EP gear oil or equivalent at port (A). Fill crankcase level to check port (B). Check level daily thereafter.

READ THIS MANUAL carefully to learn how to operate and service your machine correctly. Failure to do so could result in personal injury or equipment damage. This manual and safety Seed Tubes Large curved, regular curved, regular straight, and small straight seed tubes are available for all seed metering systems. Large curved seed tubes are recommended for Removing Seed Hopper Assembly From Row Unit 1. Rotate CCS seed delivery hose (A) counterclockwise until it unsnaps from hopper fill neck (B) and pull hose off. 2. Push down on

Rotary Scraper NOTE: The steel rotary scraper is recommended for use in abrasive soil conditions. Both plastic and steel rotary scrapers are available. The rotary scraper (A) is To change spacing, remove nuts and spacers (A). Install closing wheels with spacers located to the outside (for narrow spacing) or to the inside (for wide spacing). A-Nuts and Spacers 80 mesh main strainer is recommended. It should be checked and cleaned after initial start up, daily or as required thereafter. Obstructions may result in increased manifold pressure

Accessing The Vacuum Meter With PRO-SERIES™ XP Row Units, the vacuum meter is already exposed. Unhook rubber strap (A) and open meter door. A-Rubber Strap Adjusting Unit Mounted Single-Disk Fertilizer Opener The unit mounted single-disk fertilizer opener is NOT recommended for use in rocky conditions as fertilizer tubes are susceptible to When raising or lowering machine in the folded position, frame and hitch must be activated simultaneously. This allows the machine to raise or lower evenly, preventing damage to seed

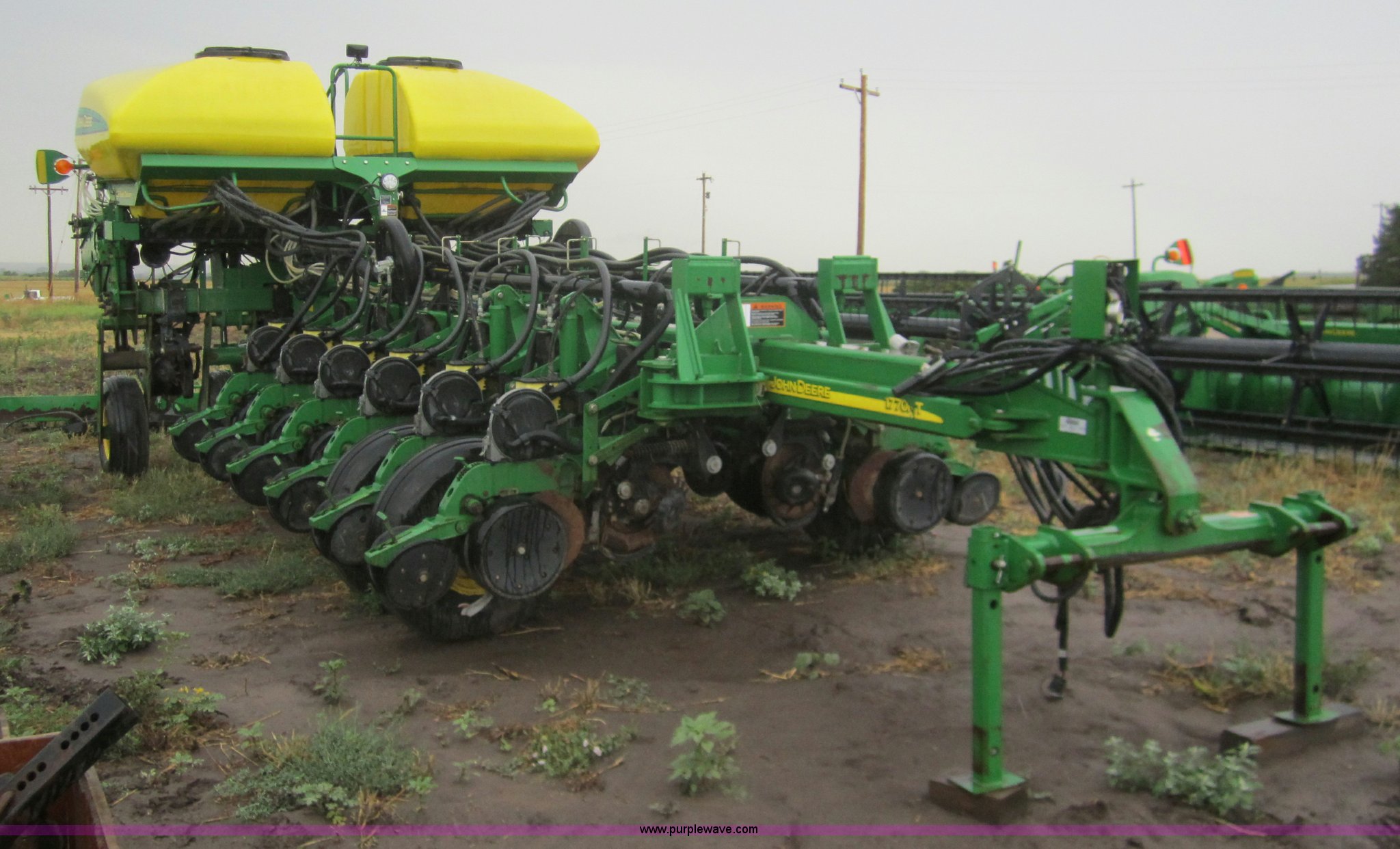

2006 John Deere 1770NT CCS 16 row planter in Lincoln, KS | Item A3783 ...

Agitator operation without CCS fan air flow may cause some seed types to plug in hoses at tank. If machine is lowered for extended periods with seed in CCS tank, turn tractor key off or unplug Inspecting Vacuum Motor IMPORTANT: Motor case drain hose (A) MUST be attached to low-pressure drain connection PRIOR to other hoses being connected. Case drain MUST have

1. Open cleanout door (A) on bottom of CCS tank. 2. Place a bucket (B) or container under cleanout door to catch remaining seed from tank. 3. Close cleanout door. 4. Repeat for all Never lubricate, service, or adjust machine while it is moving. Keep hands, feet , and clothing from power-driven parts. Disengage all power and operate controls to relieve pressure. Lower

Cleaning Seed Tube Sensors If machine is left out in the rain, clean seed tube sensors with brush. Dust on the sensor turns to mud after a rain. Be sure to get all dried mud off of sensor prior to

OMA83922: 1770NT CCS 16-Row Narrow Planter With PRO-SERIES™XP Row Units, Block File: OUO6074_00003EC_19_09AUG01.htm

Cotton-30 in. to 40 in. Rows-Rate ChartOUO6074,000087E -19-19NOV03-1/1 CAUTION: Escaping fluid under pressure can penetrate the skin, causing serious injury to you or others. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Position tractor flow control valve (A) to fast (RABBIT) setting on SCV’s used for vacuum, CCS, and variable rate drive. Vacuum level is controlled with in-line flow control valve.

5. If a problem is not resolved to your satisfaction, contact the Ag Customer Assistance Center at 1-866-99DEERE (866-993-3373) or e-mail us at [email protected]. DX,IBC,2 -19 Excessive down-force setting on row units. Decrease row unit down-force. Meters stop driving on a section of the machine or drive erratically. Failed or worn sprockets, chains, chain idlers, or Soybeans-30 in. to 40 in. Rows-Rate Chart

The CCS row unit switch (A) turns the CCS fan on and off as machine is raised and lowered. 1. Raise machine so lower parallel arm stop (B) touches planting unit frame (C). 2. Rotate sensor Section : 25 – Attach Machine Use Your Tractor Operator’s Manual CCS Fan and VacuMeter™ Motor (Case) Drain Requirements VacuMeter™ Hydraulic Motor and Variable Rate Drive
